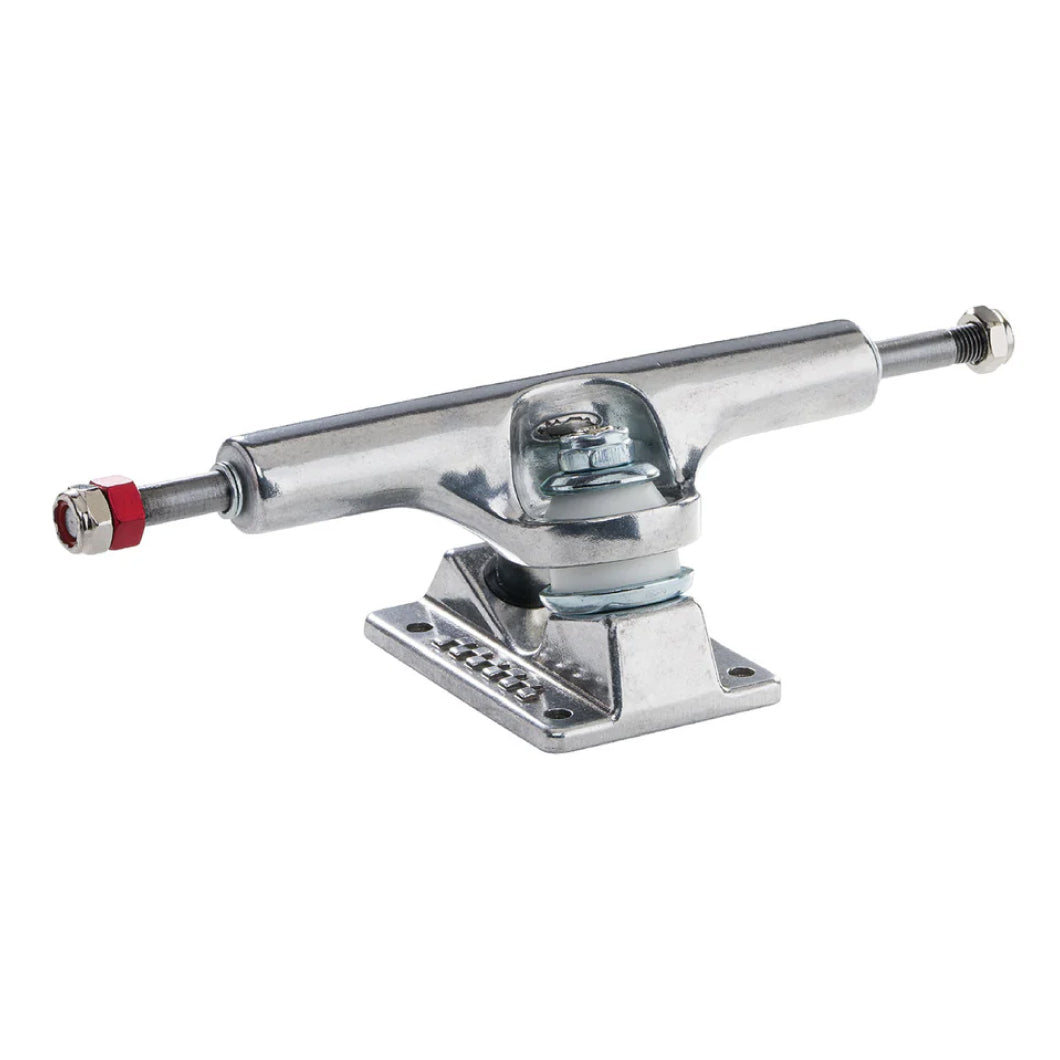

Ace AF1 66 Polished

Size Guide

6.4" Hanger
Fits 9" – 9.25" decks

Next-Level Strength, True Ace Geometry

The all-new Ace AF1 delivers game-changing performance without deviating from the classic Ace geometry riders trust. Years in development, the AF1 uses a proprietary casting process that increases aluminum strength by 70%, making it one of the strongest cast trucks on the market.

Performance You Can Trust

From grinds to smooth, responsive turns, the AF1 keeps your setup consistent and controlled. Oversized axles, refined bushing shapes, and precision-engineered components ensure reliability and precision session after session.

Engineered for Precision

• Machine-faced hanger ends for perfect bearing contact
• Patent-pending rethreading axle nuts to prevent axle damage
• 96a hand-poured urethane pivot bushings for smooth, clean response
• Refined bushing and cup washer shapes for better turning

Specs

• Hanger Width: 6.4" (163 mm)
• Axle Width: 9" (229 mm)
• Truck Height: 2.1" (53 mm)
• Deck Compatibility: 9" – 9.25"
• Weight: 14.5 oz

Construction

• Manufactured with AA 356.2 aluminum alloy using proprietary casting
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel axles, oversized to reduce bearing wobble
• Durable 96a pivot bushings for responsive turns

Why Ride AF1

✔ 70% stronger aluminum construction
✔ Smooth, controlled turning
✔ Oversized axles reduce wobble
✔ Built for durability and high-impact skating
✔ Advanced Ace technology for next-level performance
